Replaces: 5-30-0502 701898-DLO (Sloan) 1806 70171 X333210 (Master Spa)

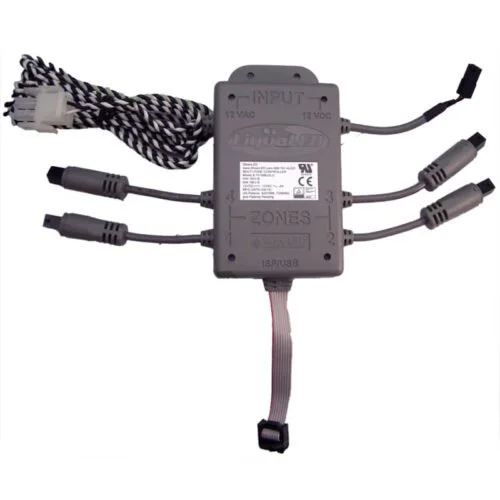

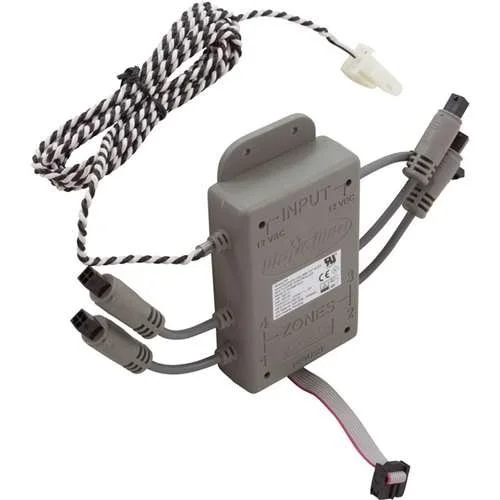

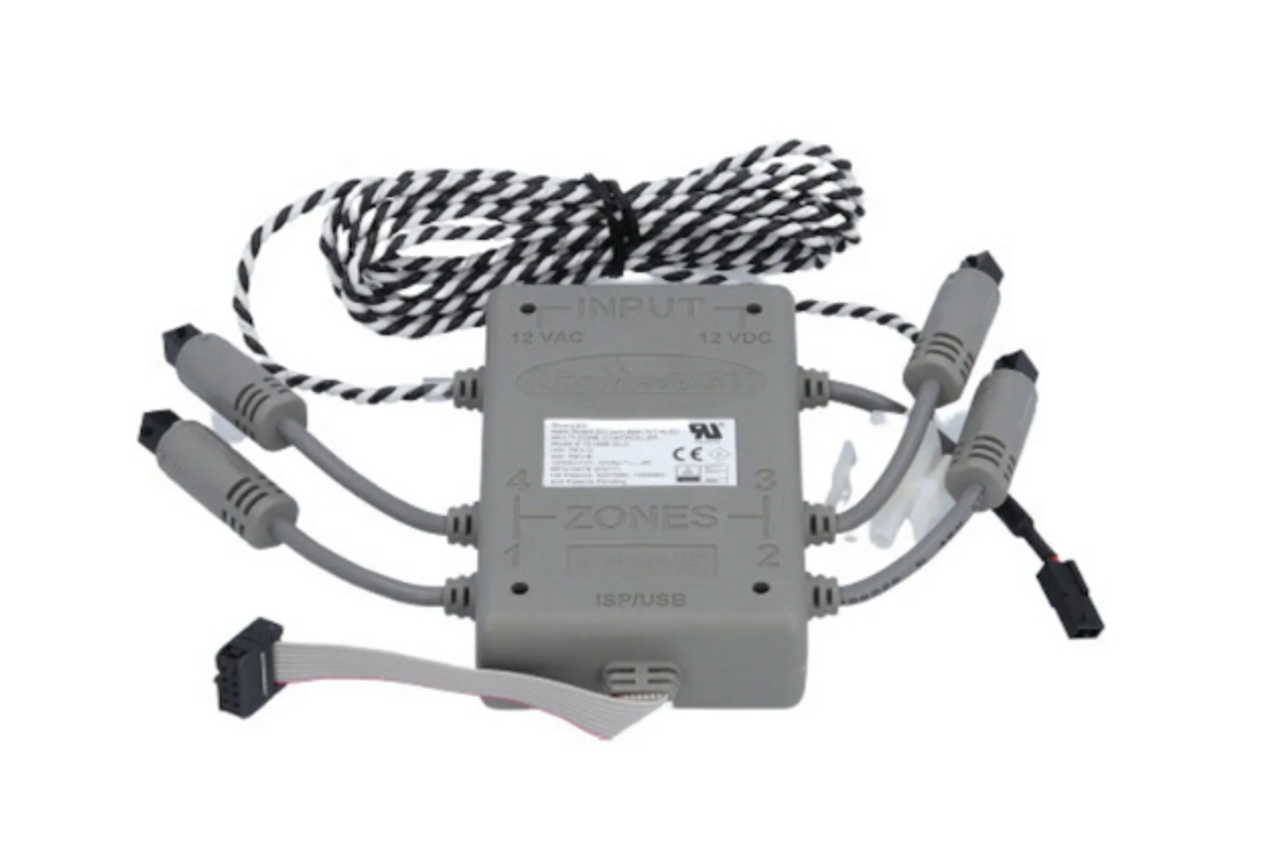

LED light controller 701898-DLO can control up to 100 points of light. 100 LED Lighting, 12Vac @ 2 Amp
This spa LED light control system is used in QCA , Master Spas, Dynasty Spas, Viking Spas and by other hot tub manufacturers. 12 volts @ 2 amps
Multi zone controller can handle up to 4 independent zones with 7 custom color sequences and up to 100 points of light including a main light. This item does not include the main light - sold separately as needed.
12 volts are provided by the spa pack/hot tub control system so no external power supply is needed.
This multi-zone controller is typically found on deluxe/premium spa models
Input voltage from spa pack 12 VAC
Additional lighting power source Optional 12 VDC input (5A Max)
Number of individual color “shows” up to 7 (programmable)
Lighting Zones Up to four
Dimensions2.9ʺ W × 4.375ʺ H × 1.0ʺ D
