Balboa Water Group Manufacturer #: G7532 Replaces: 740-0655

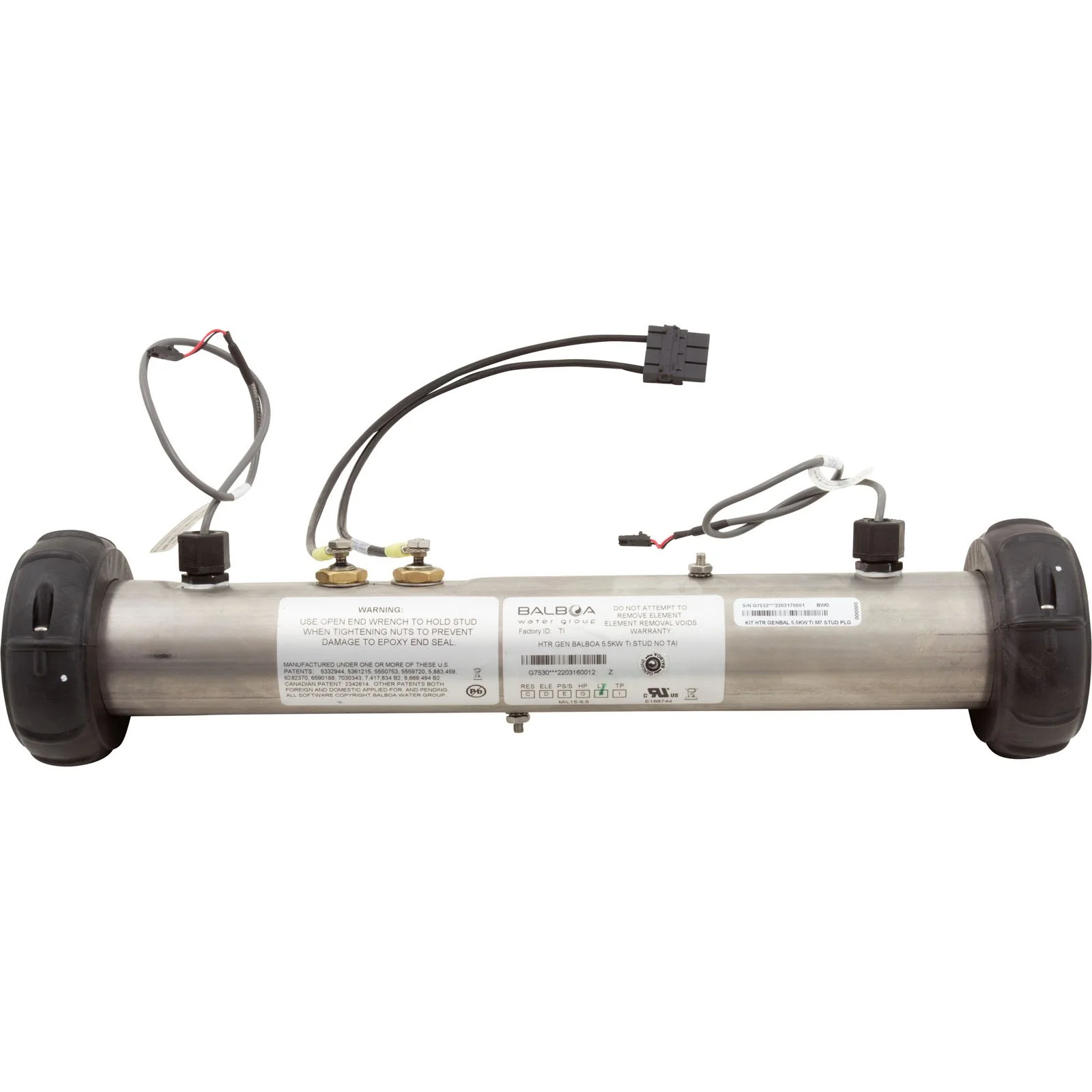

The Balboa G7532 is a 5.5kW, 230V, 15-inch "Plug N Click" (PnC) titanium heater designed primarily for Balboa's BP Series (BP501, BP7, BP8, etc.) and other M7-equipped spa systems. It is a versatile, universal-style heater often used as a direct replacement for many older Balboa VS, EL, GS, and GL systems.
Compatible Balboa Control Systems (Packs)
BP Series: BP501, BP501X, BP2000, BP7, BP8, and various MXBP style systems.
VS Series: VS501Z, VS500Z, VS510SZ.
GL Series: GL2000, GL8000, GL4.
EL Series: EL2000, EL8000.
GS Series: GS501, GS510.
Other Systems: SUV, TS, and older systems using M7 technology.
Balboa Water Group Manufacturer #: G7532 Replaces: 740-0655
The Balboa G7532 is a 5.5kW, 230V, 15-inch "Plug N Click" (PnC) titanium heater designed primarily for Balboa's BP Series (BP501, BP7, BP8, etc.) and other M7-equipped spa systems. It is a versatile, universal-style heater often used as a direct replacement for many older Balboa VS, EL, GS, and GL systems.
Compatible Balboa Control Systems (Packs)
BP Series: BP501, BP501X, BP2000, BP7, BP8, and various MXBP style systems.
VS Series: VS501Z, VS500Z, VS510SZ.
GL Series: GL2000, GL8000, GL4.
EL Series: EL2000, EL8000.
GS Series: GS501, GS510.
Other Systems: SUV, TS, and older systems using M7 technology.
Replaces These Heater Part Numbers
The G7532 is often used to replace the following, particularly when retrofitting to "Plug N Click" (no copper straps):
58000, 58010, 58083, 58086, 58089, 58105, 58123, 58140, 58117
G7510, G7512, G7530, G7410
55624, 55625, 55689, 55813, 56487
26-58308-K
